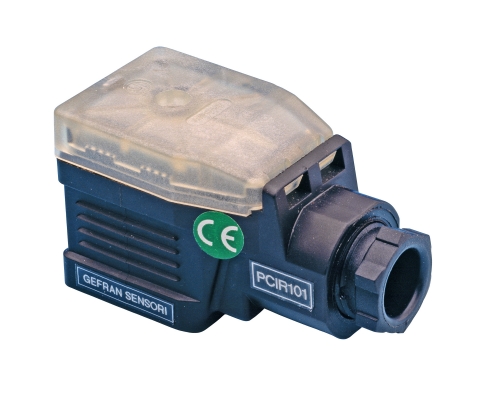

PCIR101-102 Signal conditioner with voltage (101), current 4...20ma (102) output for displacement transducers
Description
The PCIR signal conditioner provides 0...10 Vdc (PCIR 101) or 4...20 mA (PCIR 102) output for displacement transducers. It is built with a single SMD circuit using high-stability electronic components, ensuring excellent linearity and thermal stability.
The circuit is housed within a 4-pole connector and includes trimmers for zero and span adjustment.
The internal connector can be rotated in 90° increments, allowing installation on the transducer in four different orientations.
The circuit is housed within a 4-pole connector and includes trimmers for zero and span adjustment.
The internal connector can be rotated in 90° increments, allowing installation on the transducer in four different orientations.
- Interface module integrated into the connector
- Standard output 0...10 Vdc (PCIR 101)
- Standard output 4...20 mA (PCIR 102)
- High linearity
- Low zero and span thermal drift
- Adjustable zero and span
Data Sheet
