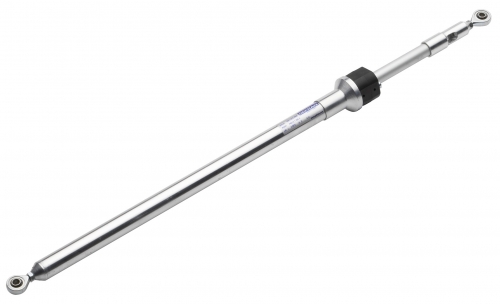

PMA Self-supporting linear position transducer with magnetic pulling - Patent pending
Description
- Stroke range: 50 to 1000 mm
- Magnetic pulling cursor
- Mechanical anchoring with self-aligning connection on 2 ball joints
- Maximum angular movement up to ±26°
- Independent linearity up to ±0.05%
- Repeatability: ≤ 0.08 mm
- Hysteresis: ≤ 0.25 mm
- Infinite resolution
- No variation in electrical output signal outside the theoretical electrical stroke
- Operating temperature: -30...+100 °C
- Electrical connection: 3-pin shielded highly flexible polyurethane cable, 1 m
- Lifetime: >25×106 m strokes or >100×106 operations, whichever is smaller (within C.E.U.)
- Protection level: IP67 (CEI EN 60529)
