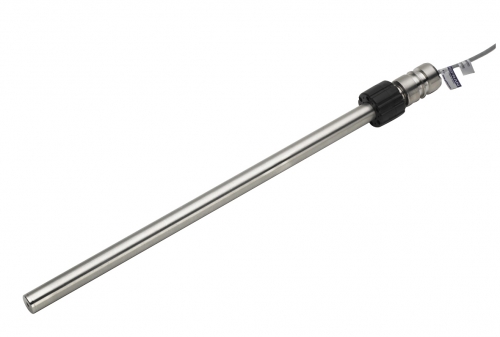

PMI Rectilinear displacement transducer with magnetic drag - Patent pending
Description
- Stroke range: 50 to 1000 mm
- Magnetic drag cursor
- Independent linearity up to ±0.05%
- Repeatability: ≤ 0.08 mm
- Hysteresis: ≤ 0.25 mm
- Tracking error (refer to table)
- Infinite resolution
- Stable electrical output outside theoretical electrical stroke
- Operating temperature: -30...+100 °C
- Electrical connection: 3-pole high-flexibility polyurethane screened cable (1 m)
- Stem and nipple made of AISI 316 stainless steel
- Life expectancy: >25×106 meters or >100×106 operations, whichever is smaller (within C.E.U.)
- Maximum working pressure: 250 bar, peak 400 bar
