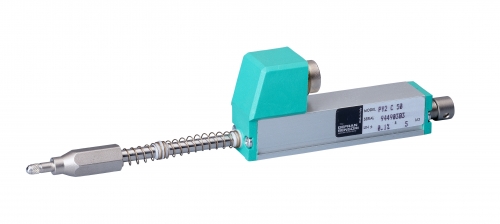

PY2 Rectilinear displacement transducer
Description
- Stroke range: 10 to 100 mm
- Dual support for control rod and return spring
- Tip with M2.5 thread and stainless steel ball
- Independent linearity up to ±0.1%
- Infinite resolution
- Stable electrical output outside theoretical electrical stroke
- Maximum displacement speed: 10 m/s
- Operating temperature: -30...+100 °C
- Electrical connections:
PY2 F: 3-wire screened cable, 1 m
PY2 C: 5-pole connector (DIN 43322) - Life expectancy: >100×106 operations (within C.E.U.)
- Protection rating: IP40
-
Suitable for explosive environments with gas (groups IIA, IIB, IIC) and combustible powders.
Standards for simple device: ATEX CEI EN 50020 2003 - paragraph 5.4 a
