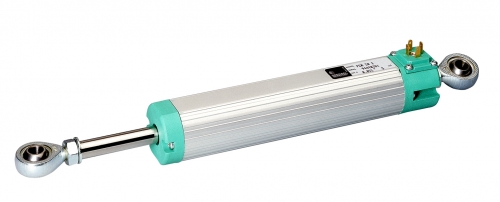

PC Selfloading rectilinear displacement transducer with cylindrical case
Description
- Stroke range from 50 to 750 mm
- Mechanical mounting with self-aligning linkage using two ball joints
- Maximum angular movement ±30°
- Independent linearity: ±0.05%
- Repeatability: 0.01 mm
- Infinite resolution
- Stable electrical signal outside the theoretical electrical stroke
- Displacement speed up to 5 m/s
- Operating temperature: -30...+100 °C
- Electrical connections:
- PC H: 3-pole connector
- PC M: 4-pole connector to standard DIN43650-ISO4400
- PC B: 5-pole connector (DIN43322)
- PC F: 3-pole screened cable (1 m length)
- Service life: >25×106 meters or >100×106 operations, whichever is smaller (within C.E.U.)
- Protection rating: IP65
