Max. temperature limit:
- 40 ... + 310 °C for type T
- 40 ... + 550 °C for type J
- 40 ... + 1050 °C for type K
(see table for sheathing diameter used)
Reference tolerances: Standards IEC 584.2 class 2
for type T:
± 1 °C (- 40 ... + 133 °C)
± 0.0075 [t] (t > + 133 °C)
for type J, K:
± 2.5 °C (- 40 ... + 333 °C)
± 0.0075 [t] (t > + 333 °C)

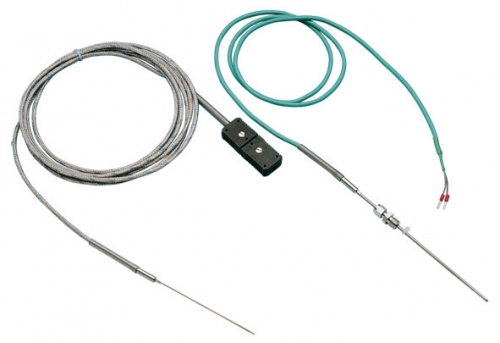

Thermoelement with compact isolation and continuous metal sheathing (MgO isolation)
